0975 254 134/5 M | 09752541345M | 5226 | Cordset

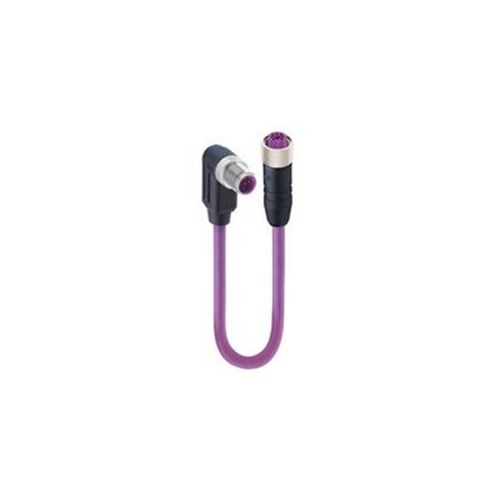

Cordset, double-ended, M12 Profibus signal cable, with M12 male connector, right angled version, B coded, and M12 female connector, straight version, B coded, 5 Metres
| Complete Electronics Part No | 09752541345M |
|---|---|
| Manufacturers Part No. | 0975 254 134/5 M |
| Type | Cordset |
| Cordset Type | Double Ended |
| Cordset Gender M12 | M12 Male - M12 Female |
| Coded Option (Circular) | B |
| Cable Entry | Right Angled - Straight |
| Number of poles | 5 |
| Protocol | Profibus |
| Rated Voltage | 60V |
| Rated Current | 4A |
| Cable Length | 5 Metres |
| Cable Jacket | PUR |
| IP Rating | IP67 / 68 / 69K |
Description
0975 254 134/5 M
Cordset, double-ended,M12 Profibus signal cable
- moulded with M12 male connector
- right angled version
- B coded
- To@# M12 female connector,straight
- B coded
- with threaded joint
- 5 poles
- 360° shielding connected to knurled screw resp. knurled nut
- colour coding of the conductor acc. to Euro-standard
- PUR jacket
- halogen-free
- screened
- Colour of jacket:violet
- Cable length 5 metres
- Number of conductors 2
