0976 PFC 152 | 25005 | Connector

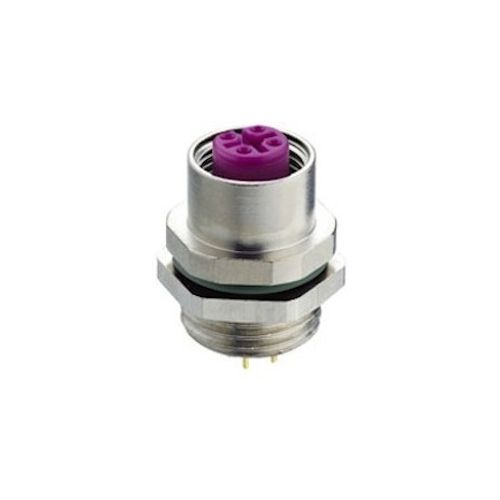

Receptacle Connector, M12 female, 5 pole
| Complete Electronics Part No | 25005 |
|---|---|
| Manufacturers Part No. | 25005 |
| Type | Recptacle Connector |
| Termination | PCB Mount |
| Mounting | Front Mounting |
| PCB Connector Mounting | PCB Straight |
| Coded Option (Circular) | B |
| Male/Female | Female M12 |
| Number of poles | 5 |
| Protocol | Profibus |
| Rated Voltage | 30V (nominal) |
| Rated Current | 4A at 40°C |
| IP Rating | IP67 |
Description
0976 PFC 152
Receptacle Connector
- For front mounting
- M12 female connector
- Printed contacts
- 5 Poles
- B Coding
- Especially suited for Profibus
- Chassis side thread PG9
