0976 PMC 201 | 7844 | Connnector

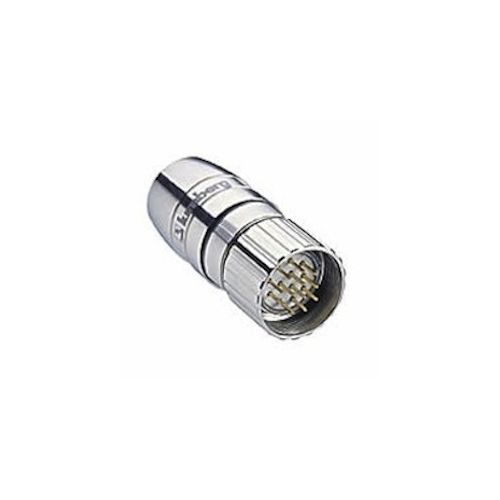

Field Attachable Connector, M23 male, 12 poles
| Complete Electronics Part No | 7844 |
|---|---|
| Manufacturers Part No. | 7844 |
| Type | Field Attachable Connector |
| Termination | Solder |
| Male/Female | Male M23 |
| Cable Entry | Straight |
| Number of poles | 6 |
| Protocol | Profibus |
| Rated Current | 8A |
| Voltage | DC 150 V |
| IP Rating | IP67 |
Description
0976 PMC 201
Field Attachable Connector
- M23 Male Connector with threaded joint
- Solder Connection
- Assembly Screw joint for cable 14.5 mm
- 12 Poles
- IP67
- Suitable for use with Profibus signal cable STL 202
