10211110 | H-BVE 3 BS | Lapp Epic® H-BVE Insert

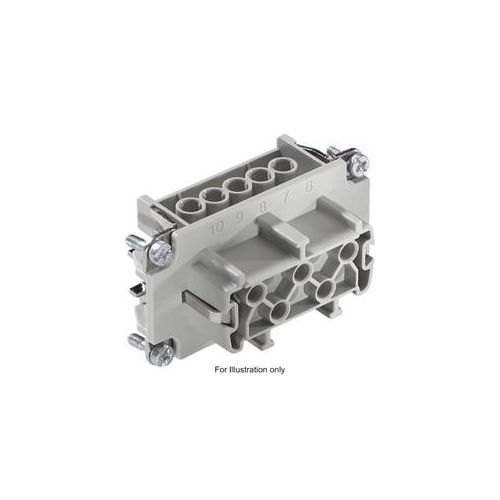

Lapp Epic® H-BVE Insert H-BVE 3 BS
| Complete Electronics Part No | 10211110 |
|---|---|
| Manufacturers Part No. | H-BVE 3 BS |
| Lapp Rectangular Type | Insert |
| Lapp Rectangular Range | H-BVE Insert |
| Number of poles | 3+PE+2 (6 contacts) |
| Male/Female | Female |
| Termination | Screw |
| Rated Voltage | 630V |
| Rated Current | 16A |
Description
10211110 / H-BVE 3 BS
Lapp Epic® H-BVE Insert H-BVE 3 BS
- High Voltage Insert with 2 Switching Contacts
- Number of Contacts: 3+2+PE
- Rated Voltage: IEC 630V
- Rated Current: IEC 16A
- Termination: Screw
- Contact Type: Female
- Connection Cross Section : 0.5 - 2.5mm²
- Contacts: Copper Alloy, Hard Silver Plated
- Temperature Range: -40°C to +100°C
- Suitable Housing: Ultra H-B 10, H-B 10 and QUICK & EASY Mount
