10431000 | H-A 4 SS | Lapp Epic® H-A Insert
£3.74
Part Number 10431000 (18 in stock)

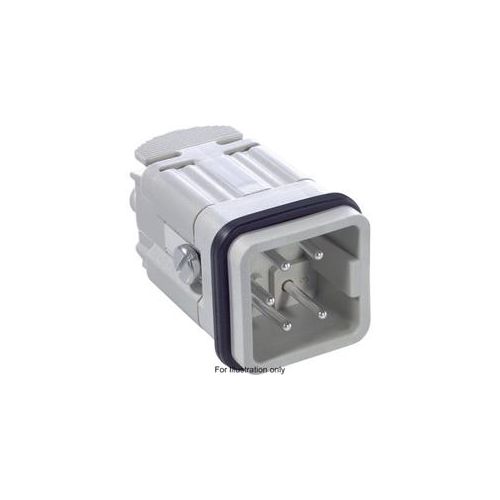

Lapp Epic® H-A Insert H-A 4 SS
| Complete Electronics Part No | 10431000 |
|---|---|
| Manufacturers Part No. | H-A 4 SS |
| Lapp Rectangular Type | Insert |
| Lapp Rectangular Range | H-A 4 Insert |
| Number of poles | 4+PE |
| Male/Female | Male |
| Termination | Screw |
| Rated Voltage | 400V |
| Rated Current | 23A |
Description
10431000 / H-A 4 SS
Lapp Epic® H-A Insert H-A 4 SS
- Small Connector inserts For Single or Three phase Current
- Number of Contacts: 4+PE
- Contacts: Copper Alloy, Hard Silver Plated
- Rated Voltage: IEC 400V
- Rated Current: IEC 23A
- Termination: Screw
- Contact Type: Male
- Connection Cross Section : 0.5 - 2.5mm²
- Temperature Range: -40°C to +100°C
- Suitable Housing: H-A 5
