10431500 | H-Q 5 SC | Lapp Epic® H-Q Insert

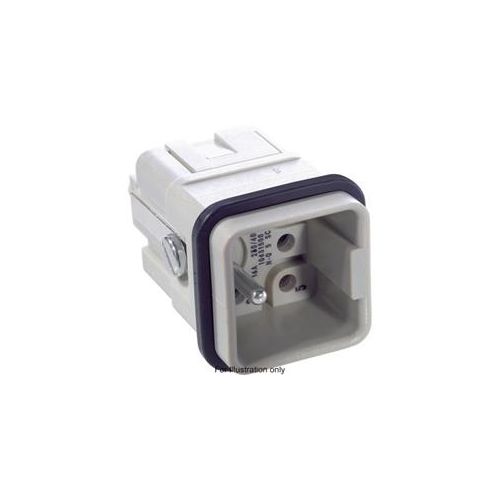

Lapp Epic® H-Q Insert H-Q 5 SC
| Complete Electronics Part No | 10431500 |
|---|---|
| Manufacturers Part No. | H-Q 5 SC |
| Lapp Rectangular Type | Insert |
| Lapp Rectangular Range | H-Q Insert |
| Number of poles | 5+PE |
| Male/Female | Male |
| Termination | Crimp |
| Rated Voltage | 230V / 400V |
| Rated Current | 16A |
Description
10431500 / H-Q 5 SC
Lapp Epic® H-Q Insert H-Q 5 SC
- Number of Contacts: 5+PE
- Contacts: Copper Alloy, Hard Silver / Gold Plated
- Rated Voltage: IEC 230V / 400V
- Rated Current: IEC 16.0A
- Termination: Crimp
- PE Contact: Screw Termination
- Contact Type: Male
- Connection Cross Section : 0.5 - 2.5mm²
- Temperature Range: -40°C to +100°C
- Suitable Housing: H-A 3
- Suitable Contact: Epic® H-BE 2.5 Machined
***Contacts to be purchased separately ***
