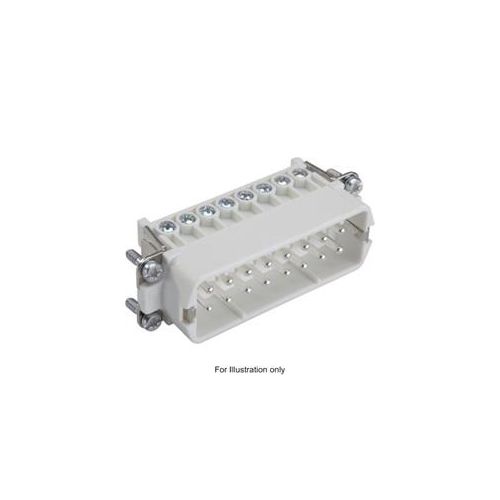

10532000 | H-A 16 SS | Lapp Epic® H-A Insert
Lapp Epic® H-A Insert H-A 16 SS
| Complete Electronics Part No | 10532000 |
|---|---|
| Manufacturers Part No. | H-A 16 SS |
| Lapp Rectangular Type | Insert |
| Lapp Rectangular Range | H-A 16 Insert |
| Number of poles | 16+PE |
| Male/Female | Male |
| Termination | Screw |
| Rated Voltage | 250V |
| Rated Current | 16A |
Description
10532000 / H-A 16 SS
Lapp Epic® H-A Insert H-A 16 SS
- Slim Standard Insert
- Number of Contacts: 16+PE
- Contacts: Copper Alloy, Hard Silver Plated
- Rated Voltage: IEC 250V
- Rated Current: IEC 16A
- Termination: Screw
- Contact Type: Male
- Connection Cross Section : 0.5 - 2.5mm²
- Temperature Range: -40°C to +100°C
- Suitable Housing: H-A 16
