11265000 | H-D 40 SCG | Lapp Epic® H-D Insert

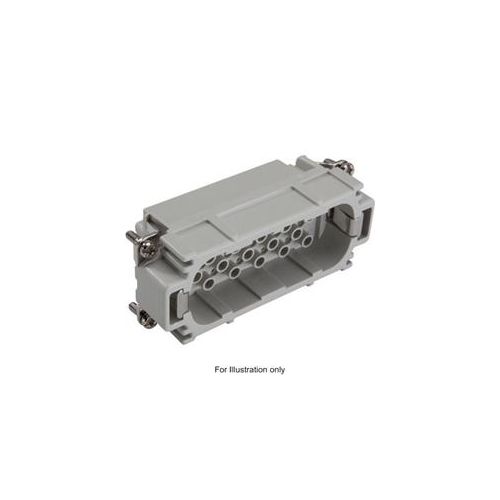

Lapp Epic® H-D Insert H-D 40 SCG
| Complete Electronics Part No | 11265000 |
|---|---|
| Manufacturers Part No. | H-D 40 SCG |
| Lapp Rectangular Type | Insert |
| Lapp Rectangular Range | H-D Insert |
| Number of poles | 40+PE |
| Male/Female | Male |
| Termination | Crimp |
| Rated Voltage | 250V |
| Rated Current | 10A |
Description
11265000 / H-D 40 SCG
Lapp Epic® H-D Insert H-D 40 SCG
- Multi Pole Insert For Stamped Contacts
- Number of Contacts: 40+PE
- Rated Voltage: IEC 250V
- Rated Current: IEC 10A
- Termination: Crimp
- Contact Type:Male
- Connection Cross Section : 0.14 - 2.5mm²
- Contacts: Copper Alloy, Hard Silver / Gold Plated
- Temperature Range: -40°C to +100°C
- Suitable Housing: Ultra H-B 16, H-B 16 and QUICK & EASY Mount
- Suitable Contact: Epic® H-D 1.6 Stamped (on Reel)
***Contacts to be purchased separately ***
