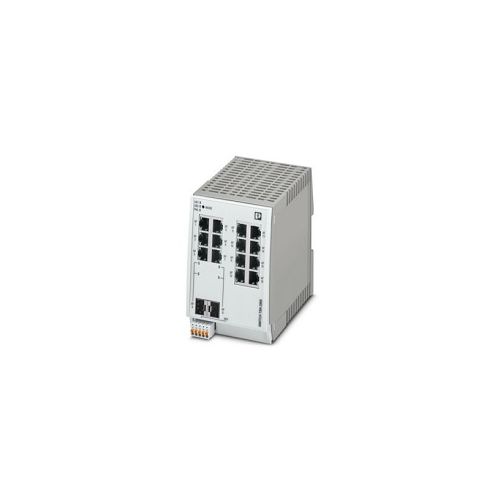

1232302 | FL SWITCH TSN 2314-2SFP | Ethernet Switch

Managed TSN Switch 2000, 14 RJ45 ports 10/100/1000 Mbps, 2 SFP ports 100/1000 Mbps, PROFINET Conformance-Class B, Store-and-forward switch

More Information
Complete Electronics Part No	1232302
Manufacturers Part No.	1232302
Phoenix Ethernet Series	Managed Switch TSN 2000
Managed / Unmanaged	Managed
Total 100/1000 (FX) Ports	2
Total 10/100/1000 (RJ45) Ports	14
Total Ethernet Ports	16
FX (Optical) Port Connector Type	SFP
IP Rating	IP20

Description

FL SWITCH TSN 2314-2SFP

14 x Twisted Pair RJ45 Ports, 2 x SFP Ports

Ethernet (RJ45 x 14)

Transmission speed: 10/100/1000 Mbps

Transmission length:100 m (per segment)

Signal LED's: Data receive, link status

Ethernet (SFP x 2)

Transmission speed: 100/1000 Mbps (full duplex)

Transmission physics: Depending on the SFP module

Transmission length: up to 80 km (depending on the SFP module used)

Signal LEDs: Data receive, link status

Switch functions

Auto Negotiation and Autocrossing

Complies with IEEE 802.3, store and forward switching

Jumbo frames (max. 9,600 bytes)

Transmission of MMS and GOOSE (IEC 61850-8-1)

Transmission of Modbus/TCP

SNTP (Simple Network Time Protocol)

DIN Rail Mount

PROFINET device

Supply voltage: 24V DC

Supply voltage range: 12 V DC ... 57 V DC

Power supply connection Via COMBICON, max. conductor cross section 1.5 mm²

Typical current consumption: 810 mA (at 24 V DC & 25°C ambient)

Degree of protection: IP20

Operating Temperature: -40°C ... 60°C

Dimensions

Width: 85mm

Height: 130mm

Depth: 115mm

Housing Material: Polycarbonate fibre reinforced

Mounting Type: DIN Rail

Commercial data

Weight per Piece (excluding packing): 445 g

Weight per Piece (including packing): 680.6 g

Part Number 1232302

GTIN: 4063151333188

Country of Origin: DE
