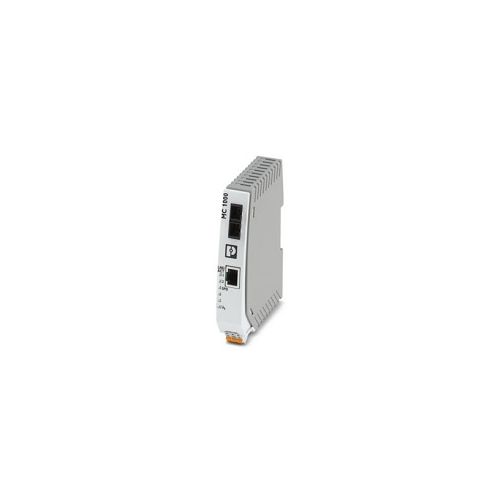

1329817 | MC 1000-MM SC | FO converters
Media converter comes with one 10/100 Mbps twisted-pair RJ45 port and one 100 Mbps multimode fiber port with an SC duplex connector
| Complete Electronics Part No | 1329817 |
|---|---|
| Manufacturers Part No. | 1329817 |
| Phoenix Ethernet Series | FO Converters TX - FO |
| Total 10/100 (RJ45) Ports | 1 |
| Total Ethernet Ports | 2 |
| FX (Optical) Port Connector Type | SC Duplex |
| FX (Optical) Cable Type | Multi Mode (MM) |
| IP Rating | IP30 |
Description
MC 1000-MM SC - FO converters
For converting 100 BaseTX to multi-mode fiberglass
Ethernet (RJ45 x 1)
Transmission speed: 10/100 Mbps
RJ45 jack, shielded
Transmission length: 100 m (Twisted pair, shielded)
Signal LED's: LNK/ACT, SPD, US
Link Fault Pass Through
Auto-MDI(X)
Ethernet (Optical)
Connection: SC duplex
Transmission medium: Multi-mode fiberglass
Wavelength: 1310 nm
Functions
Converter with SC duplex port for converting 10/100 Base-T to fiber
Supply voltage: 24V DC
Supply voltage range: 12 V DC ... 48 V DC
Power supply connection Push-in spring connection
Typical current consumption: 20 mA (at 24 V DC)
Degree of protection: IP30
Operating Temperature: -10°C ... 60°C
Approvals: CE-compliant, UL 61010-1, UL 61010-2-201
Dimensions
Width: 22.5mm
Height: 123mm
Depth: 90mm
Housing Material: Polyamide fiber reinforced
Mounting Type: DIN Rail
Commercial data
Weight per Piece (excluding packing): 180 g
Part Number: 1329817
GTIN: 4063151624569
Customs tariff number: 85176200
Country of Origin: CA
