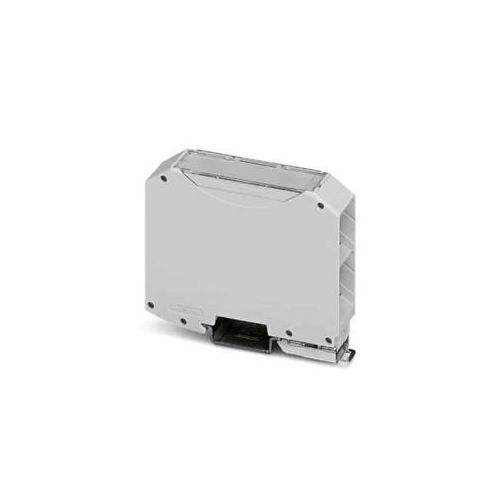

2199485 | ME MAX 22,5 SF G 2-2 BU | Housing without vents
Complete housing without vents, Cross connection: DIN rail bus connector, colour: blue, width:22.5mm, length: 85mm
| Complete Electronics Part No | 2199485 |
|---|---|
| Manufacturers Part No. | 2199485 |
| Material / Type | Polyamide |
| Enclosure Shape | Rectangular |
| Enclosure Length | 51mm to 100mm |
| Enclosure Width | up to 50mm |
| Enclosure Height | 51 to 100mm |
| Housing Selection | ME Series Housings |
Description
ME MAX 22,5 SF G 2-2 BU
Complete housing without vents
- Cross connection: DIN rail bus connector
- colour: blue
- width:22.5mm
- length: 85mm
- height: 70.4 mm
- number of positions cross connector: 5
- Housing material: Polyamide
- Operating Temperature: -40 °C ... 105 °C (depending on power dissipation)
- Weight per Piece: 33.190g
- Country of origin: Germany
