36525 | KEL-EMC-Z 16\4 | Cable Assembly Bracket
KEL-EMC-Z 16\4 Cable Assembly Bracket, with shield earthing and integrated strain relief, Direct, and quick contact to the enclosure, Length 120mm
| Complete Electronics Part No | 36525 |
|---|---|
| Manufacturers Part No. | 36525 |
| Category | Bracket |
| ATEX Approval | Not ATEX Approved |
| Series | KEL EMC |
Description

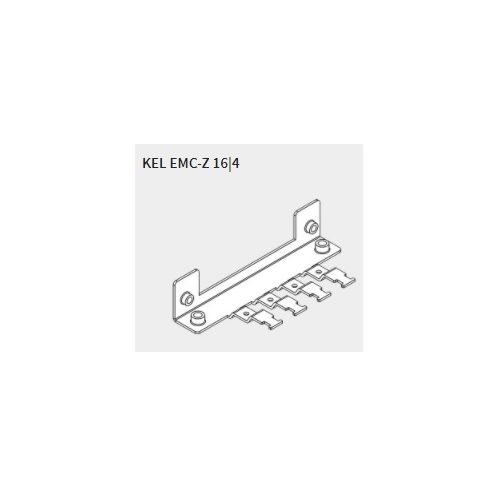

KEL-EMC-Z 16\4 Cable Assembly Bracket
- Length L1: 120 mm
- Length L2: 103 mm
- Width: 56 mm
- Height: 28 mm
- Mounting Height: 28 mm
- No. of Screw Holes: 2
- Number of teeth: 4
- Hole Size: M5 / M6
- PU: 1
- icotek order number: 36525
- EAN: 4251269303050
L1 is the overall length and L2 is the screw fixing centres
