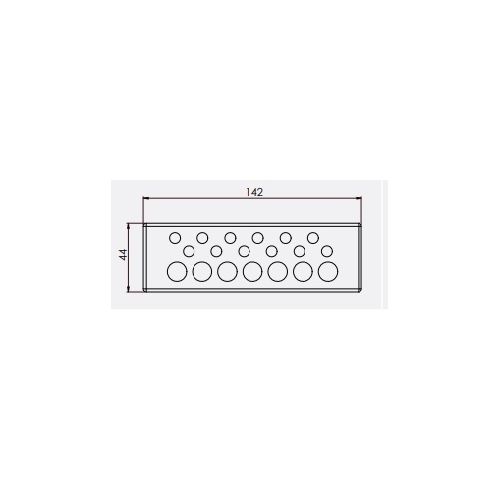

43516 | KEL-DP 24/19 A Grey | Cable Entry Plate
KEL-DP Cable Entry Plate, For routing cables without connectors, Cut out Dimensions: 36 x 112mm
| Complete Electronics Part No | 43516 |
|---|---|
| Manufacturers Part No. | 43516 |
| Number of Cables | max 19 |
| Core Colour | Grey |
| ATEX Approval | Not ATEX Approved |
| Enclosure Shape | Rectangular |
Description
KEL-DP Cable Entry Plate
For routing cables without connectors
- Number of Cables: max 12 x 6.5 + 7 x 12.1mm
- Cut out Dimensions: 36 x 112mm
- Plate Depth: 5mm
- For wall thickness: 1.5 - 2.5mm
- Colour: Grey (Similar to RAL 7035)
- Make a small hole in the thin membrane and push the cables through
- Material: Elastomer
- Flame Class: UL94-V0, self-extinguishing
- Halogen and Silicone free
- High Cable Density
- No Tools Required
- Pack Unit 10
- icotek part number: 43516
