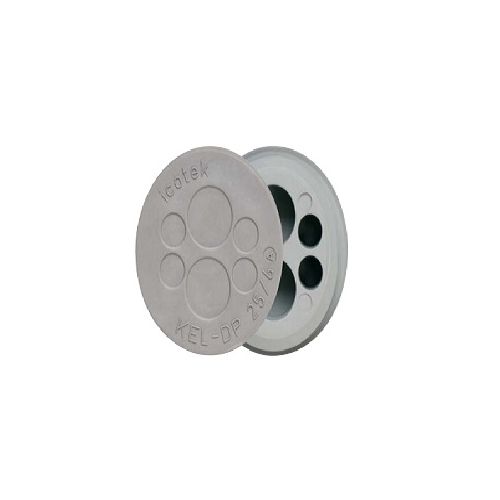

43566 | KEL-DP 50/20 B Grey | Cable Entry Plate
KEL-DP Round Cable Entry Plate, For routing cables without connectors, Cut out Diameter: 50mm
| Complete Electronics Part No | 43566 |
|---|---|
| Manufacturers Part No. | 43566 |
| Number of Cables | max 20 |
| Core Colour | Grey |
| ATEX Approval | Not ATEX Approved |
| Cable Length | 10 Metres |
| Enclosure Shape | Circular |
| External Diameter | 60mm |
Description
KEL-DP Round Cable Entry Plate
For routing cables without connectors
- Number of Cables: max 16 x 6.3 + 4 x 9.3mm
- Cut out Diameter: 50mm
- Plate Depth: 5mm
- For wall thickness: 2.8 - 4.0mm
- Colour: Grey (Similar to RAL 7035)
- Make a small hole in the thin membrane and push the cables through
- Material: Elastomer
- Flame Class: UL94-V0, self-extinguishing
- Halogen and Silicone free
- High Cable Density
- No Tools Required
- Pack Unit 10
- icotek part number: 43566
