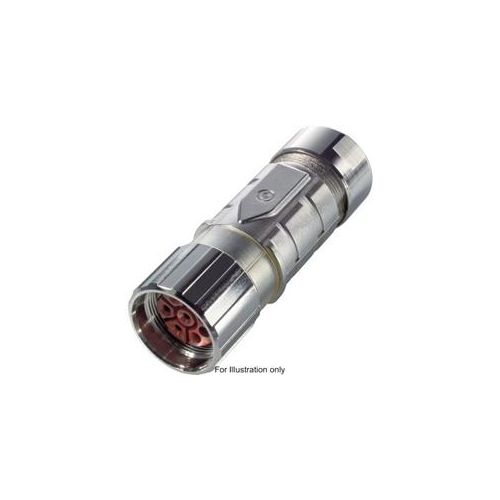

44420088 | Lapp Circular Connector | Epic® Power LS1 D6
Lapp Epic®Power LS1 D6 Cable Connector, Number of Contacts: 3+PE+4 (8 Contacts)
| Complete Electronics Part No | 44420088 |
|---|---|
| Manufacturers Part No. | 44420088 |
| Type | Cable Socket |
| Lapp Circular Range | Power LS1 D6 |
| Number of poles | 3+PE+4 (8 contacts) |
| Male/Female | Female |
| Termination | Crimp |
| Mounting | Cable |
| Clamping Range | 14-17mm |
Description
Part Number 44420088
Lapp Epic®Power LS1 D6 Cable Connector
- Number of Contacts: 3+PE+4 (8 Contacts)
- Contact Size: 2mm
- Rated Voltage: 630V-2mm Contacts, 250V-1mm Contacts
- Rated Current: 25A/26A
- Gender: Female
- Supplied WITHOUT Contacts
- Housing: Nickel Plated Zinc die casting
- Ingress Protection: IP68
- Temperature Range: -25°C to +125deg;C
- EMC Optimised
- Clamping Range: 14 - 17mm
***Contacts to be purchased separately see LS1 Accessories Section***
