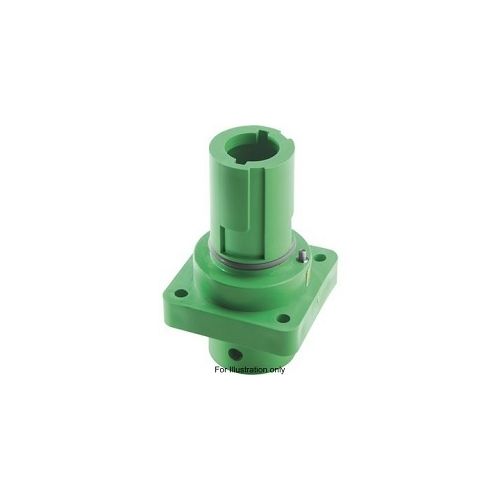

44420221 | Lapp Circular Connector | Epic® Powerlock A 1 C
Lapp Epic® Powerlock A 1 C (Drain), For Unscreened Single Core Power Cables, Crimp Termination - 35 to 240mm²
| Complete Electronics Part No | 44420221 |
|---|---|
| Manufacturers Part No. | 44420221 |
| Type | Connector Body |
| Lapp Circular Range | Powerlock A1 C |
| Male/Female | Drain |
| Termination | Crimp |
| Connector Colour | Green |
| Mounting | Panel Mount with Flange |
Description
Part Number 44420221
Lapp Epic® Powerlock A 1 C (Drain)
- For Unscreened Single Core Power Cables
- Each colour has a different coding to prevent incorrect connection
- Crimp Termination - 35 to 240mm²
- Silver plated copper
- Rated Voltage: 1000V
- Rated Current: 660A max
- Pin Configuration: PE - Green
- Powerlock A 1 PE/GN
- Ingress Protection: IP67 -mated
- Temperature Range: -25°C to +125deg;C
- Panel Mount Base
- Fixing Holes: Ø5.5mm x 4
***Contacts to be purchased separately see Powerlock Accessories Section***
