935-800-001 | BTL-1-L-5-1-6-W2-08T1-2-02TX-S-Z9-HH-HH | Hirschmann
DIN rail mounted SPE Lite Managed Switch with IP40 housing. 8 x M8 10BASE-T1L downlink, 2 x RJ45 100BASE-TX uplink.
| Complete Electronics Part No | 935800001 |
|---|---|
| Manufacturers Part No. | 935-800-001 |
| Ethernet Product Type | Lite Managed Switch |
| Total 10 Base Ports | 8 x M8 10BASE-T1L (SPE) |
| Total 10/100 (RJ45) Ports | 2 x Uplink |
| Total SPE Ports | 8 |
| Total Ethernet Ports | 10 |
| Operating Voltage | DC 24 V |
| Mounting | DIN Rail |
| IP Rating | IP40 |
Description

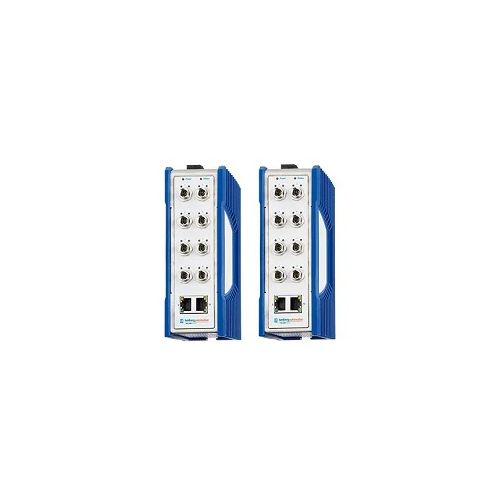

BEETLE Lite Managed Switch
DIN rail mounted SPE Lite Managed Switch with IP40 housing.
- 8 x M8 10BASE-T1L downlink ports
- 2 x RJ45 100BASE-TX uplink.
- Operating temperature range: -10°C to +60°C.
- 24-volt DC power supply.
- Capable of PoDL class 12.
- Supports OPC UA, EtherNet/IP and Modbus TCP
- LEDs: Power, Port State, Device Status, PoDL
- Power Supply Connector: 1 x plug-in terminal block, 6-pin
- Operating Voltage 24 VDC
- Voltage ranges: 18 V-32 VDC (20 V-30 VDC for PoDL)
- Dimensions (W x H x D): 61 mm x 163.6 mm x 114.7 mm
- Weight: 1016 g
- Part Number: 935800001
