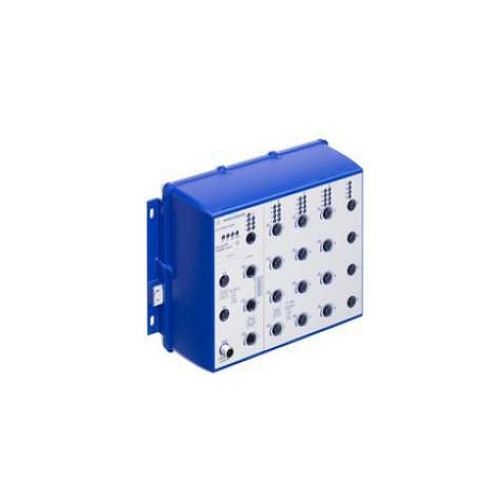

942133009 | OCTOPUS 4GE-8FE-HV-Train
OCTOPUS IP67/IP65 Industrial Ethernet Switch, 12 ports in total
| Complete Electronics Part No | 942133009 |
|---|---|
| Manufacturers Part No. | 942133009 |
| Total Ethernet Ports | 12 |
| Operating Voltage | DC 72V - 110V |
| Mounting | Wall |
| IP Rating | IP65 / 67 |
Description
OCTOPUS Managed Ethernet Switch
IP65 / IP67 switch
- In accordance with IEEE 802.3
- Store-and-forward-switching
- HiOS Layer 2 Advanced
- TP-cable
- 12 ports in total
- Uplink ports 10/100/1000BASE-TX
- M12 "X"-coded, 8-pins
- Local ports 10/100BASE-TX M12 "D"-coded, 4-pin
- V.24 interface 1 x M12 4-pin socket, A coding
- USB interface 1 x M12 5-pin socket, A coding
- Operating Voltage 1 x 72/110 VDC (50.4 .. 138 VDC)
- Operating temperature -40-+70 °C
- Dimensions (WxHxD) 261 mm x 186 mm x 95 mm
- Weight 3.5 kg
- Mounting Wall mounting
