942133010 | OCTOPUS 4GE-24FE-PoE-LV-Train

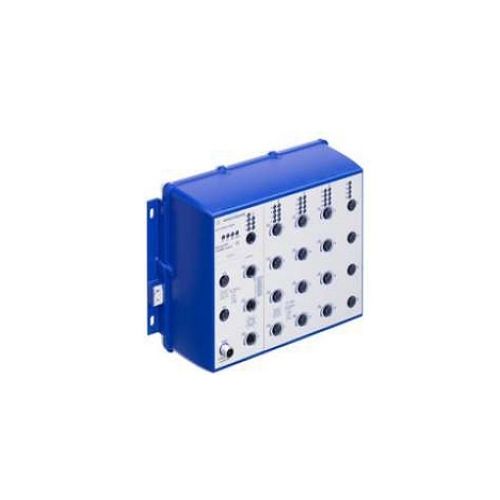

OCTOPUS IP67/IP65 Industrial Ethernet Switch, 28 ports in total
| Complete Electronics Part No | 942133010 |
|---|---|
| Manufacturers Part No. | 942133010 |
| Number Of POE Ports | 15 |
| Total Ethernet Ports | 28 |
| Operating Voltage | 2 x 24/36/48 VDC |
| Mounting | Wall |
| IP Rating | IP65 / 67 |
Description
OCTOPUS Managed Ethernet Switch
IP65 / IP67 switch
- In accordance with IEEE 802.3
- Store-and-forward-switching
- HiOS Layer 2 Advanced
- TP-cable
- 28 ports in total
- Uplink ports 10/100/1000BASE-TX
- M12 "X"-coded, 8-pins
- Local ports 10/100BASE-TX M12 "D"-coded, 4-pin
- 15 x PoE(+) Ports (phantom power)
- V.24 interface 1 x M12 4-pin socket, A coding
- USB interface 1 x M12 5-pin socket, A coding
- Operating Voltage 2 x 24/36/48 VDC (16.8 .. 60 VDC)
- Operating temperature -40-+70 °C
- Dimensions (WxHxD) 338 mm x 186 mm x 95 mm
- Weight 4.5 kg
- Mounting Wall mounting
