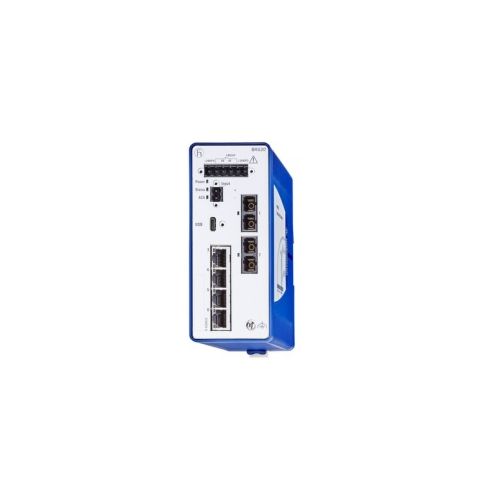

942170027 | BRS20-4TX/2FX-SM-HL | BOBCAT Ethernet Switch
Managed 6 port Fast-Ethernet-Switch, Din Rail Mounted, 2 x uplink: 100BASE-FX, SM-SC, 4 x standard 10/100 BASE TX, RJ45
| Complete Electronics Part No | 942170027 |
|---|---|
| Manufacturers Part No. | 942170027 |
| Ethernet Product Type | BRS20 |
| Total 10/100 (RJ45) Ports | 4 |
| Total 100 Base Ports | 2 |
| Total Ethernet Ports | 6 |
| FX (Optical) Port Connector Type | SC |
| FX (Optical) Cable Type | Single Mode (SM) |
| Operating Voltage | DC 12V / 24V |
| Mounting | DIN Rail |
| IP Rating | IP30 |
Description
BRS20-0600S2S2-STCX99HHSESXX.X.XX
6 port Fast-Ethernet-Switch
- Managed
- Mounting: DIN rail
- Fanless design
- uplink: 100BASE-FX, SM-SC
- uplink: 100BASE-FX, SM-SC
- 4 x standard 10/100 BASE TX, RJ45
- Operating voltage 2 x 12 to 24 VDC
- Operating temperature 0 ºC ... 60 ºC
- Weight: 420g
- Protection Class: IP30
- Housing Material: Plastic
- Accessories available to order:-
- AutoConfiguration Adapter ACA22-USB-C (EEC) 942-239-001
- 6-pin terminal block with screw lock (50 pieces) 943 845-013
- 2-pin terminal block with screwlock (50 pieces) 943 845-009
- Industrial HiVision Network Management Software 943 156-xxx
