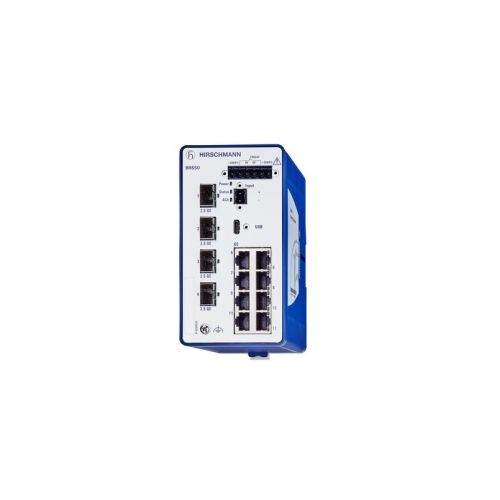

942170111 | BRS50-8TX/4SFP-2A | Bobcat Ethernet Switch
Availability: Approximately 4 to 6 weeks
Bobcat Managed Industrial Switch for DIN Rail, Real-time communication using TSN, 12 Ports in total, Operating voltage 2 x 12 V DC ... 24 VDC
| Complete Electronics Part No | 942170111 |
|---|---|
| Manufacturers Part No. | 942170111 |
| Ethernet Product Type | BRS50 |
| Total 100/1000 (FX) Ports | 4 |
| Total 10/100/1000 (RJ45) Ports | 8 |
| Total Ethernet Ports | 12 |
| FX (Optical) Port Connector Type | GE - SFP |
| SFP / XFP Base | 2.5 Gigabit |
| Operating Voltage | DC 12V / 24V |
| Mounting | DIN Rail / Wall |
| IP Rating | IP30 |
Description
BRS50-00122Q2Q-STCY99HHSEAXX.X.XX
Real-time communication using TSN
- 12 Ports in total
- 8x 10/100/1000BASE TX / RJ45
- 4x100/1000/2500Mbit/s fiber
- 1. Uplink: 2 x SFP Slot (100/1000/2500 Mbit/s)
- 2. Uplink: 2 x SFP Slot (100/1000/2500 Mbit/s)
- Operating voltage 2 x 12 V DC ... 24 VDC
- Power supply/signaling contact: 1 x plug-in terminal block, 6-pin
- Digital Input: 1 x plug-in terminal block, 2-pin
- Operating temperature: -40-+70°C
- Dimensions (WxHxD): 73 mm x 138 mm x 115 mm
- Weight: 570g
- Mounting: DIN Rail
- Protection class: IP30
- Housing Material: PC-ABS
- Approvals: CE, FCC, EN61131, EN62368-1
