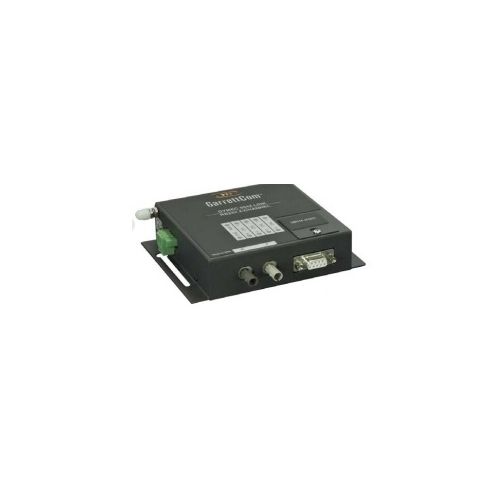

942267004 | GarrettCom 5942D4HRT-L R | Industrial Ethernet
Full duplex four channel devices, Power-on light, a “SYNC” LED, and eight diagnostic LEDs., Fibre Type: Multi Mode, Input Power: 24 to 48VDC
| Complete Electronics Part No | 942267004 |
|---|---|
| Manufacturers Part No. | 942 267-004 |
| Ethernet Product Type | Media Converter |
| GarrettCom Series | Dymec 5942D |
Description
Hardened 4 Channel RS232 Over Single Fibre Pair
Full duplex four channel devices
- Power-on light, a “SYNC” LED, and eight diagnostic LEDs.
- Fibre Type: Multi Mode
- Input Power: 24 to 48VDC
- 12µS Channels 2,3,4
- I/O Data Format: EIA RS232; CCITT v.24
- Data Connector: 9 pin D-Type Female
- Operating Temperature: -40°C to +85°C
- Each channel has its own diagnostic LED’s for easier debug when installing
- Certified to IEEE 1613 and Class 1 Div2
