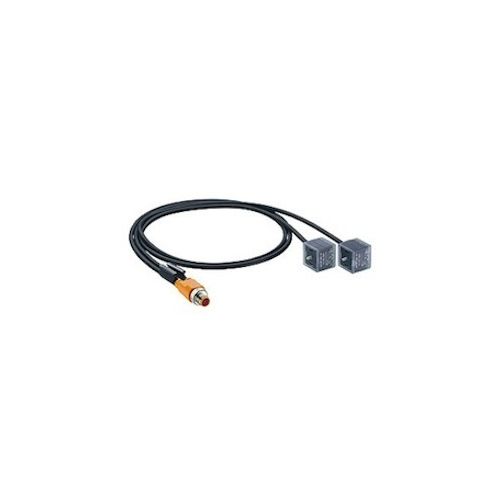

ASB 2-VAD 1A-1-3-226/5 M | 55766 | Cordset
Actuator/Sensor Cordset, Double ended, M12 Duo to two valve connectors, 5 poles, 5m
| Complete Electronics Part No | 55766 |
|---|---|
| Manufacturers Part No. | 55766 |
| Type | Cordset |
| Cordset Type | Double Ended |
| Cordset Gender M12 | M12 Duo Male - 2x Valve Connectors |
| Cable Entry | Straight - Right Angled |
| Number of poles | 5 |
| Valve Connector Form | A |
| Rated Current | 4A at 40°C |
| Voltage | AC/DC 24 V |
| Cable Length | 5 Metres |
| Cable Jacket | PUR |
| IP Rating | IP67 |
Description
ASB 2-VAD 1A-1-3-226/5 M
Actuator/Sensor Cordset, Double ended
- M12 Duo male connector with self-locking threaded joint
- To
- Two valve connectors according to DIN EN 175301 803, Form A
- Cable exit 0° and 180°
- 5 Pole
- 5 Meter
- PUR jacket
- Halogen free
- Black
