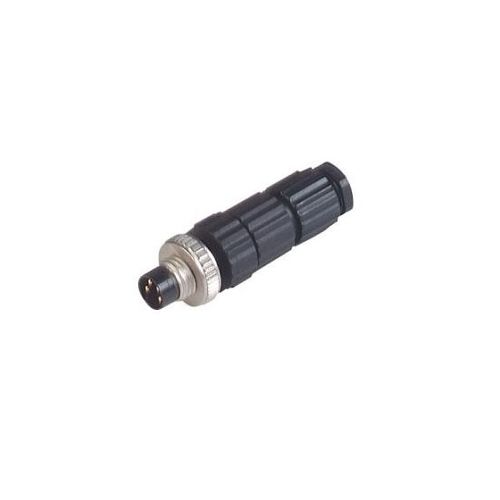

ELST 4008 V | 933407100 | Connector
£4.27
Part Number 933407100 (74 in stock)
Straight cable plug, unassembled, 4 Pole, Male, Rated voltage: AC/DC 20 V, Rated current: 3 A (2 A at 0.14 mm2)
| Complete Electronics Part No | 933407100 |
|---|---|
| Manufacturers Part No. | 933 407-100 |
| Type | Cable Plug |
| Socket / PIN | PIN |
| Male/Female | Male |
| Cable Entry | Straight |
| Number of poles | 4 |
| Rated Current | 3 A (2 A at 0.14 mm2 ) |
| Voltage | AC/DC 20 V |
| IP Rating | IP67 |
Description
ELST 4008 V
Straight cable plug, unassembled
- Male,
- 4 pole
-
Strain relief by means of clamping cage
- Cable gland: M 9.5 x 1
- Suitable cables: diameter 4 mm to 5 mm / 0.14 mm2 to 0.34 mm2
- Rated current: 3 A (2 A at 0.14 mm2)
- Rated voltage: AC/DC 20 V
