EXP-A911/10/S | EXPA91110S | Bulgin | Connector

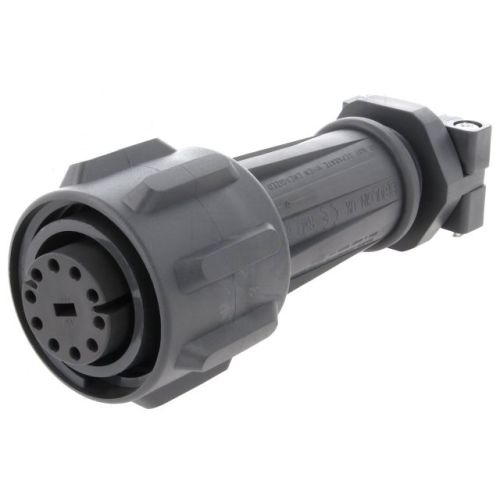

EXP Series EXPlora 10 Pole Female Flex Cable Connector
| Complete Electronics Part No | EXPA91110S |
|---|---|
| Manufacturers Part No. | EXP-A911/10/S |
| Type | Cable Socket |
| Mounting | Cable |
| Number of poles | 10 |
| Termination | Screw |
| Male/Female | Female |
| Housing Construction | Plastic |
| Cable Entry | Straight |
| Cable Diameter | 20-22mm, 14-20mm with additional gland pack |
| Rated Voltage | 250V |
| Rated Current | 10A |
| IP Rating | IP68 |
Description
EXP-A911/10/S
EXP Series EXPlora 10 Pole Female Flex Cable Connector
- ATEX approval for Zone 2 & 22 applications
- Voltage: 250Vac/dc
- Current: 10Amps
- Gender: Female
- Contact: Sockets
- Termination: Screw
- Temperature Range -20 °C/+55°C
- IP Rating: IP68 when mated
- Accepts 20-22mm cable dia. as standard & 14-20mm with optional gland pack
- Mates with EXP-A921,EXP-0921,EXP-0931,EXP-0941 ranges
- Accessory: Sealing Cap EXP-0990 & Gland Pack EXP-0980
