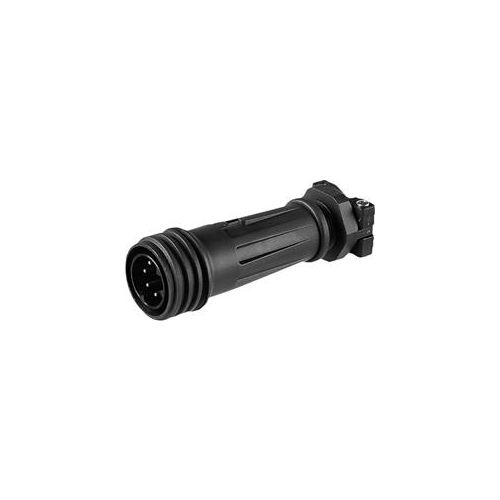

EXP-A921/07/P | EXPA92107P | Bulgin Connector
EXP Series EXPlora 7 Pole Male In-Line Flex Cable Connector
| Complete Electronics Part No | EXPA92107P |
|---|---|
| Manufacturers Part No. | EXP-A921/07/P |
| Type | Cable Plug |
| Mounting | Cable |
| Number of poles | 7 |
| Termination | Screw |
| Male/Female | Male |
| Housing Construction | Plastic |
| Cable Entry | Straight |
| Cable Diameter | 20-22mm, 14-20mm with additional gland pack |
| Rated Voltage | 430V |
| Rated Current | 16A |
| IP Rating | IP68 |
Description
EXP-A921/07/P
EXP Series EXPlora 7 Pole Male In-Line Flex Cable Connector
- ATEX approval for Zone 2 & 22 applications
- Voltage: 430Vac/dc
- Current: 16Amps
- Gender: Male
- Contact: Pins
- Termination: Screw
- Temperature Range -20 °C/+55°C
- IP Rating: IP68 when mated
- Accepts 20-22mm cable dia. as standard & 14-20mm with optional gland pack

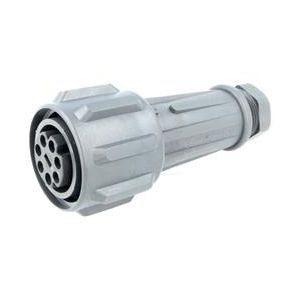

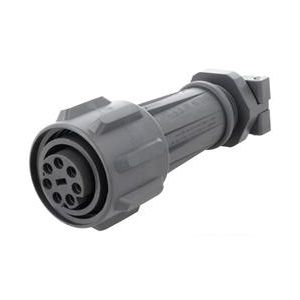

- Mates with EXP-0911,EXP-A911 ranges
- Accessory: Sealing Cap EXP-0991 & Gland Pack EXP-0980
