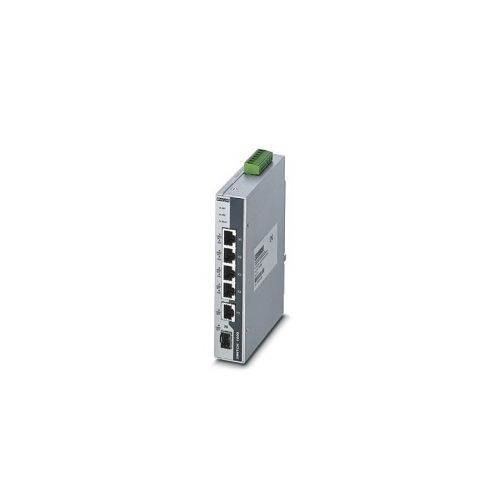

FL SWITCH 1001T-4POE-GT-SFP | 1026932 | PoE+ Ethernet Switch

DIN Rail Mount Unmanaged PoE+ Ethernet switch, 4 x 10/100/1000 Mbps PoE+ RJ45 ports, 1 x 10/100/1000 Mbps, 1 x SFP 100 Mbps Port

More Information
Complete Electronics Part No	1026932
Manufacturers Part No.	1026932
Phoenix Ethernet Series	Unmanged Switch 1000
Managed / Unmanaged	Unmanaged
Total 100/1000 (FX) Ports	1
Total 10/100/1000 (RJ45) Ports	5
Number Of POE Ports	4
Total Ethernet Ports	6
FX (Optical) Port Connector Type	SFP
IP Rating	IP30

Description

DIN Rail mount PoE+ Ethernet switch

4 x 10/100/1000 Mbps PoE+ RJ45 ports
1 x 10/100/1000 Mbps Port
1 x 1000Mbps SFP Port (full duplex)
Total PoE system budget of 120 W
Jumbo frames up to 10240 bytes
Auto negotiation and autocrossing
Transmission Length (RJ45): 100m (per segment)
MRP (client and manager)
RSTP
VLANs
DHCP client, DHCP server (pool-based and port-based), DHCP option 82
Configuration Memory
Web-based management, SNMP
Signal LED's: LNK/ACT, PoE
Automatic detection of IEEE 802.3at or 802.3af powered devices
Power Supply Connection: Via COMBICON, max. conductor cross section 2.5 mm²
Connection Method: Push-in spring connection
Supply Voltage: 24 / 48 V DC (Redundant)
Supply Voltage Range: 18 V DC...57 V DC
Typical Current Consumption: 214 mA (at U_S = 24 V DC and 25 °C ambient temperature)
Signal contact control voltage: 48 V DC (Typical)
Degree of protection: IP30
Operating Temperature: -40°C ... 70°C
Width: 30mm
Height: 149mm
Depth: 107.8mm
Mounting Type: DIN Rail
Weight per Piece (excluding packing): 492 g
Part Number 1026932
GTIN: 4055626520346
Customs tariff number: 85176200
Country of origin: TW
