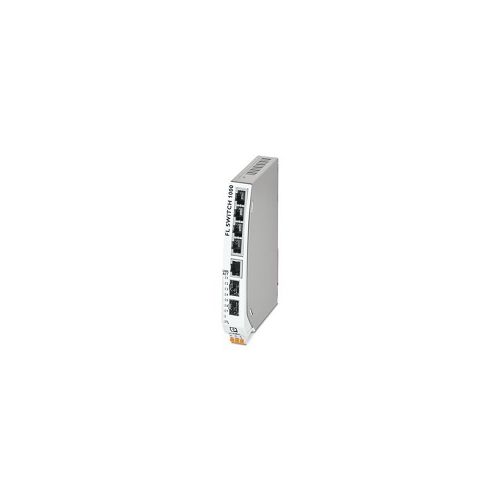

FL SWITCH 1004NT-SFX | 1085169 | Ethernet Switch
Narrow Ethernet switch, wide temperature range, four RJ45 ports with 10/100 Mbps on all ports, one SFP port with 100 Mbps, automatic data speed detection
| Complete Electronics Part No | 1085169 |
|---|---|
| Manufacturers Part No. | 1085169 |
| Phoenix Ethernet Series | Unmanged Switch 1000 |
| Managed / Unmanaged | Unmanaged |
| Total 10/100 (RJ45) Ports | 4 |
| Total 100 Base Ports | 1 |
| Total Ethernet Ports | 5 |
| IP Rating | IP30 |
Description
FL SWITCH 1004NT-SFX
4 x Twisted Pair RJ45 Ports, 1 x SFP
- 4 x10/100 Mbps Ports
- 1 x 100 Mbps SFP Ports
- PROFINET Conformance-Class A
- Transmission length:100 m (per segment)
- Auto Negotiation and Autocrossing
- Signal LEDs: Data receive, Link status
- Supply voltage: 24V DC
- Supply voltage range: 9 V DC ... 32 V DC
- Power supply connection Via COMBICON, max. conductor cross section 2.5 mm²
- Connection Method: Push-in spring connection
- Typical current consumption: 21mA (at 24 V DC)
- Degree of protection: IP30
- Operating Temperature: -40°C ... 75°C
- Width: 22.5mm
- Height: 117mm
- Depth: 84mm
- Housing Material: Polycarbonate fibre reinforced
- Mounting Type: DIN Rail
- Weight per Piece (excluding packing): 204 g
- Part Number 1085169
- GTIN: 4055626834917
- Customs tariff number: 85176200
- Country of origin: TW
