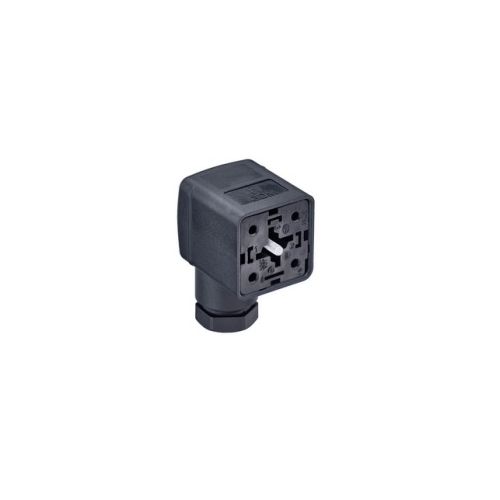

GDM2106-D3U-10D | 934888013 | Valve Connector 2+PE
GDM Standard DIN Standard Field Attachable Connector: Form A, 3-pin (2+1PE; PE across cable outlet) with bridge rectifier, 230 V AC/DC
| Complete Electronics Part No | 934888013 |
|---|---|
| Manufacturers Part No. | 934888013 |
| Type | Cable Socket |
| Voltage | AC/DC 250V |
| Number of poles | 3 |
| Cable Gland Size | M16 |
| Valve Connector Form | A |
| Termination | Screw |
| Insert Type | Bridge Rectifier |
| IP Rating | IP65 |
Description
GDM2106-D3U-10D
2+1PE; with Bridge Rectifier
- Form A
- 2 +PE (3pin)
- With Bridge Rectifier
- Black Housing
- Screw Type
- Cable Gland: M16
- Operating Voltage: 230 V AC/DC
- Rated Current 1 A
- Field Attachable
- Gender: Female
- Unshielded
- Central Screw
- Screw Connection
- Gasket Sold Seperately
- Contact Plating: Cu/Sn
- Housing material: PA GF
- Operating Temperature: -40°C - +125°C
- IP Rating: IP65
