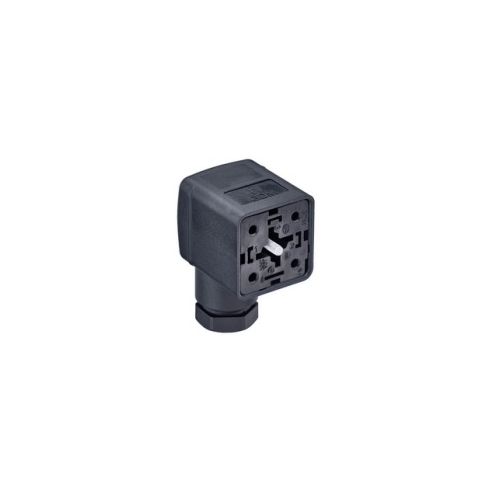

GDM210D-A0U-10F | 934888108 | Valve Connector 2+PE
GDM Standard DIN Field Attachable Connector: Form A, 3-pin (2+1PE; PE across cable outlet), Gasket sold seperately, 230 V AC/DC, 16A
| Complete Electronics Part No | 934888108 |
|---|---|
| Manufacturers Part No. | 934888108 |
| Type | Cable Socket |
| Voltage | AC/DC 250V |
| Number of poles | 3 |
| Cable Gland Size | 1/2" NPTF |
| Valve Connector Form | A |
| Termination | Screw |
| IP Rating | IP65 |
Description
GDM210D-A0U-10F
2+1PE; PE across cable outlet
- Form A
- 2 +PE (3pin)
- Black Housing
- Screw Type
- Cable Gland: 1/2" NPTF
- Without Circuitry
- Operating Voltage: 230 V AC/DC
- Rated Current 16 A
- Field Attachable
- Gender: Female
- Unshielded
- Gasket Material: Supplied seperately
- Central Screw
- Screw Connection
- Contact Plating: Cu/Sn
- Housing material: PA GF
- Operating Temperature: -40°C - +125°C
- IP Rating: IP65
