icotek 41520 | KT - DT3 | Cable Grommet
Cable Grommet, For use with split icotek cable entry frames, For cables without connectors, Number of Cables: 4 max.6.5 mm + 3 max. 9.5 mm + 3 max. 11.3 mm
| Complete Electronics Part No | 41520 |
|---|---|
| Manufacturers Part No. | 41520 |
| Number of Cables | max 10 |
| ATEX Approval | Not ATEX Approved |
| Enclosure Shape | Square |
Description
icotek 41520 | DT3 | Cable Grommet
Membrane Cable Grommet
- Compatible with split icotek cable entry frames
- For cables without preassembled connectors
- Part No.: 41520
- EAN: 4251269307300
- Pack Unit: 10 Piece(s)
- Clamping range: 4 × 1 - 6.5 mm, 3 × 1 - 9.5 mm, 3 × 1 - 11.3 mm
- For wire type: Round cable

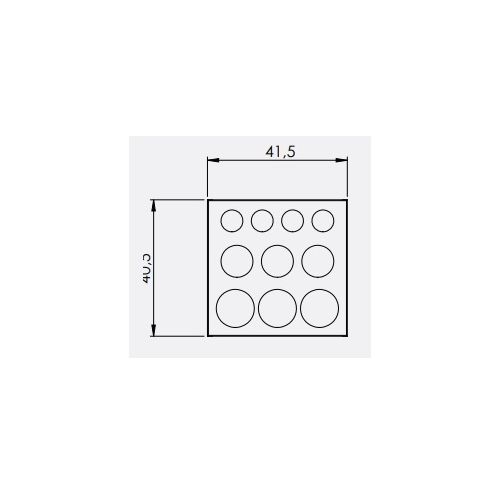

- Length: 44 mm
- Width: 41 mm
- Height: 19 mm
- Mounting height: 2 mm
- Material: Elastomer
- Flame Class: UL94-V0, self-extinguishing
- Ingress Protection: IP54
- UL type 12 (acc. to UL 50E)
- Temperature: - 40°C to + 90°C (static)
- Halogen and Silicone Free
- icotek Order Number: 41520
