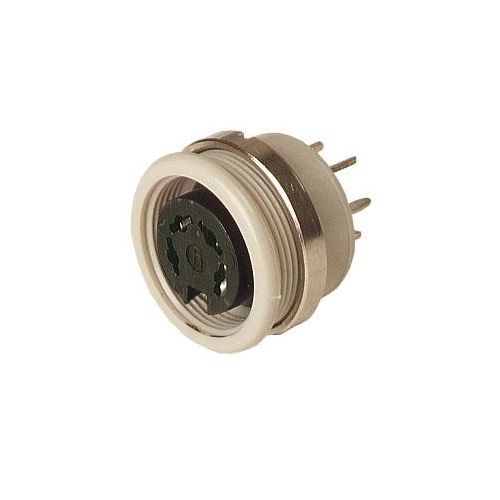

MAB 4100 V | 932254517 | 4 Pin DIN Socket
4 Pin DIN Female Panel Mounted Socket with locking nut for PCB Mounting
| Complete Electronics Part No | 932 254-517 |
|---|---|
| Manufacturers Part No. | 932254517 |
| Type | DIN Socket |
| Number of poles | 4 |
| Shielding | Not Shielded |
| Termination | Solder |
| Mounting | Panel Mount with Locking Ring |
| PCB Connector Mounting | PCB Straight |
| Socket / PIN | Socket |
| Rated Voltage | 34V |
| Rated Current | 4A |
| IP Rating | IP30 |
Description
MAB 4100 V
Panel-mounted socket
- with locking nut for PCB Mounting
- Solder joint
- Not shielded
- Female, 4 pole
- Rated voltage: AC/DC 34 V
- Rated current: 4 A
