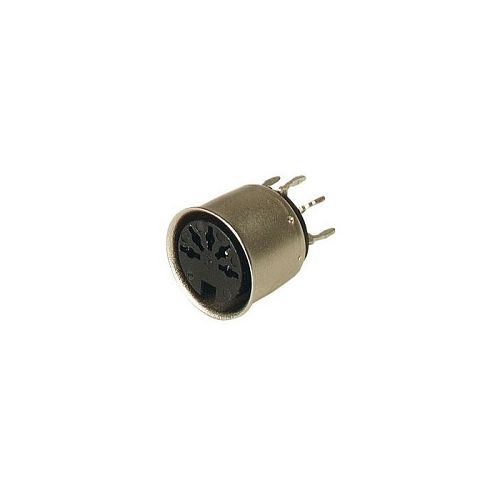

MAB 5 SV | 930777200 | 5 Pin DIN Socket
£0.75
Part Number 930777200 (201 in stock)
5 Pole Female Panel Mounted Socket for PCBs ***Discontinued***
| Complete Electronics Part No | 930777200 |
|---|---|
| Manufacturers Part No. | 930 777-200 |
| Type | DIN Socket |
| Number of poles | 5 |
| Termination | PCB Mount |
| Mounting | Panel Mount |
| PCB Connector Mounting | PCB Straight |
| Socket / PIN | Socket |
| Pole Arrangement DIN | DIN 41524 |
| Rated Voltage | 34V |
| Rated Current | 4A |
| IP Rating | IP30 |
Description
MAB 5 SV
Panel-mounted socket for PCBs
- Plug-in direction parallel to the PCB
- Solder terminal
- Female
- 5 pole
- Rated voltage: AC/DC 34 V
- Rated current: 4 A
***This product is being discontinued***
Last Order Date June 30th 2022
Related Products
-

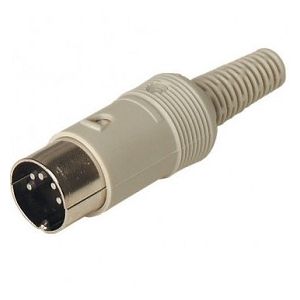

MAS 50 S Grey | 930131517 | 5 Pin DIN PlugOut of stock
