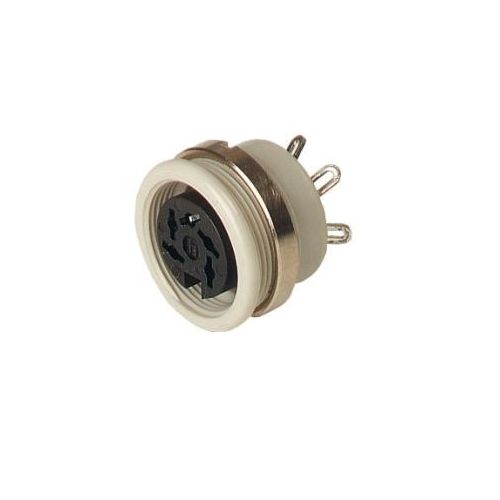

MAB 5100 Grey | 930952517 | 5 Pin DIN Socket
5 pin DIN Panel mounted socket with locking screw
| Complete Electronics Part No | 930 952-517 |
|---|---|
| Manufacturers Part No. | 930952517 |
| Type | DIN Socket |
| Number of poles | 5 |
| Shielding | Not Shielded |
| Termination | Solder |
| Mounting | Panel Mount with Locking Ring |
| Socket / PIN | Socket |
| Rated Voltage | 34V |
| Rated Current | 4A |
| IP Rating | IP30 |
Description
MAB 5100 Grey
Panel-mounted socket with locking screw
***This product is being discontinued***
Last Order Date: June 30th 2024
- Solder joint
- Un-shielded
- Female, 5 pole
- Rated voltage:AC/DC 34 V
- Rated Current: 4A
