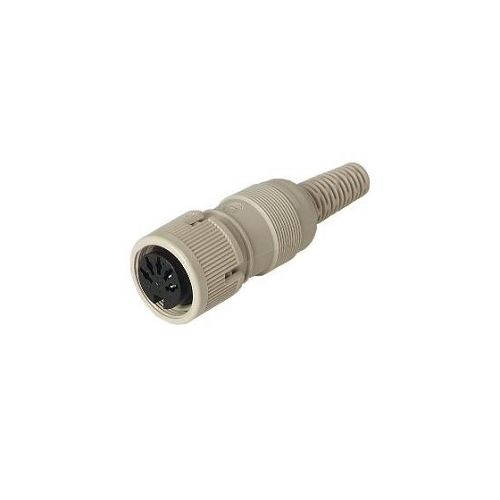

MAK 3100 S UM | 931110117 | 3 Pin DIN Socket
3 Pin DIN, Female Straight Socket with locking ring, Bulk pack
| Complete Electronics Part No | 931110117 |
|---|---|
| Manufacturers Part No. | 931 110-117 |
| Type | DIN Socket |
| Number of poles | 3 |
| Termination | Solder |
| Mounting | Cable Mount with Locking Ring |
| Socket / PIN | Socket |
| Pole Arrangement DIN | DIN 41524 |
| Cable Entry | Straight |
| Rated Voltage | 34V |
| Rated Current | 4A |
| IP Rating | IP30 |
Description
MAK 3100 S UM
Socket with locking ring
***This product is being discontinued***
Last Order Date: June 30th 2024
- Solder joint.
- Female
- 3 pole.
- Cable diameter: 5.5 mm,
- Rated voltage: AC/DC 34 V,
- Rated current: 4 A.
