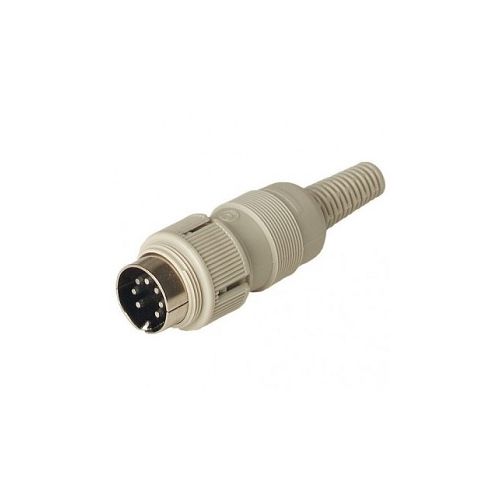

MAS 7100 S UM | 930689117 | 7 Pin DIN Plug
7 Pin DIN Straight Plug
| Complete Electronics Part No | 930689117 |
|---|---|
| Manufacturers Part No. | 930 689-117 |
| Type | DIN Plug |
| Number of poles | 7 |
| Termination | Solder |
| Mounting | Cable Mount with Locking Ring |
| Socket / PIN | PIN |
| Pole Arrangement DIN | DIN 45329 |
| Cable Entry | Straight |
| Rated Voltage | 34V |
| Rated Current | 4A |
| IP Rating | IP30 |
Description
MAS 7100 S UM
Plug with locking ring
***This product is being discontinued***
Last Order Date: June 30th 2024
- Solder joint
- Male
- 7 pole.
- Cable diameter: 5.5 mm,
- Rated voltage: AC/DC 34 V,
- Rated current: 4 A.
