MAWI 30 B | 931597517 | 3 Pin DIN Plug

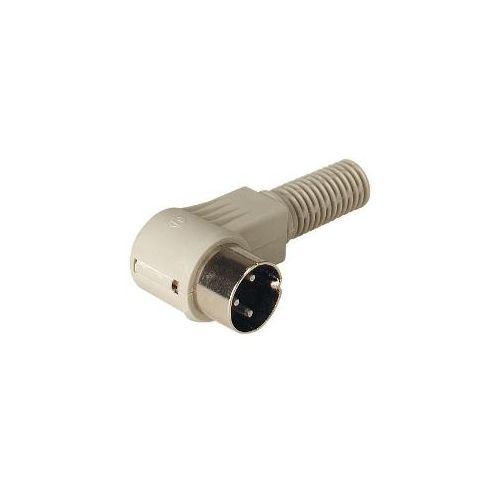

3 Pin DIN Right Angled Cable Plug
| Complete Electronics Part No | 931 597-517 |
|---|---|
| Manufacturers Part No. | 931597517 |
| Type | DIN Plug |
| Number of poles | 3 |
| Termination | Solder |
| Mounting | Cable |
| Socket / PIN | PIN |
| Pole Arrangement DIN | DIN 41524 |
| Cable Entry | Right Angled |
| Rated Voltage | 34V |
| Rated Current | 4A |
| IP Rating | IP30 |
Description
MAWI 30 B
Angled plug with insulated handle
***This product is being discontinued***
Last Order Date: June 30th 2024
- Solder joint.
- Male
- 3 pole.
- Cable diameter: 6.5 mm,
- Rated voltage: AC/DC 34 V.
- Rated current: 4 A
