MAWI 70 SB | 931575517 | 7 Pin DIN Plug

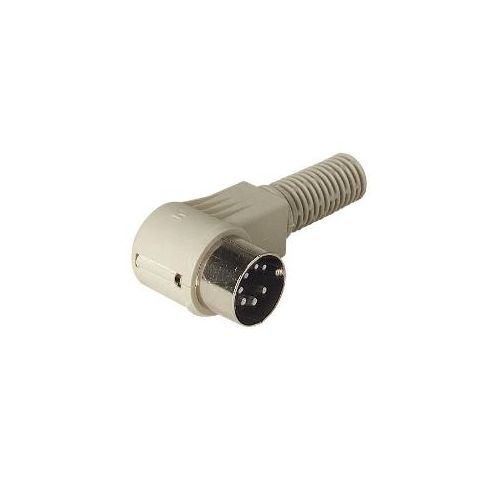

7 Pin DIN Right Angled Cable Plug
| Complete Electronics Part No | 931 575-517 |
|---|---|
| Manufacturers Part No. | 931575517 |
| Type | DIN Plug |
| Number of poles | 7 |
| Termination | Solder |
| Mounting | Cable |
| Socket / PIN | PIN |
| Pole Arrangement DIN | DIN 45329 |
| Cable Entry | Right Angled |
| Rated Voltage | 34V |
| Rated Current | 4A |
| IP Rating | IP30 |
Description
MAWI 70 SB
Male, 7 pole angled plug with insulated handle
***This product is being discontinued***
Last Order Date: June 30th 2024
- Solder joint.
- Cable diameter 6.5 mm.
- Rated voltage AC/DC 34 V.
- Rated current 4 A.
