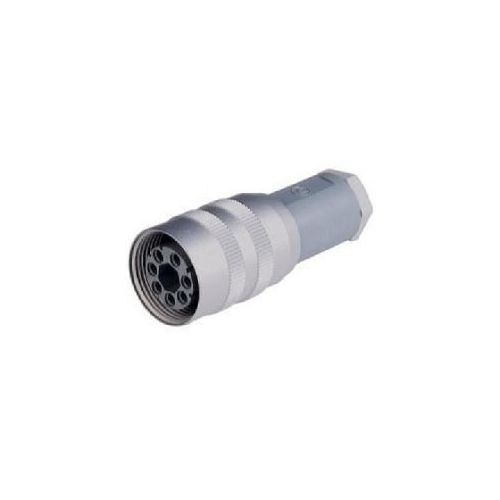

N6REF | 931720001 | Connector
6 Pole + Earth Straight cable socket with strain relief by means of a clamping cage. PG 11
| Complete Electronics Part No | 931720001 |
|---|---|
| Manufacturers Part No. | 931 720-001 |
| Type | Cable Socket |
| Standard | DIN 43651 |
| Termination | Crimp |
| Number of poles | 6+PE |
| Male/Female | Female |
| Voltage | AC/DC 250V |
| Rated Current | 10A |
| Cable Entry | Straight |
| Cable Gland Size | PG11 |
| IP Rating | IP65 |
Description
N6R EF
6 Pole Straight cable socket
- DIN EN 175201-804
- Female, 6 pole + Earth.
- Cable Gland: PG 11.
-
Strain relief by means of a clamping cage
- Cable diameter: 7 mm to 9 mm.
- Suitable cables: 0.5 mm2 to 1.5 mm2.
- Rated current: 10 A.
- Rated voltage: AC/DC 250 V.
- Crimps not included – please order separately
