PXP7010/10S/CR/1113 | PXP701010SCR1113 | Bulgin 7000 Series

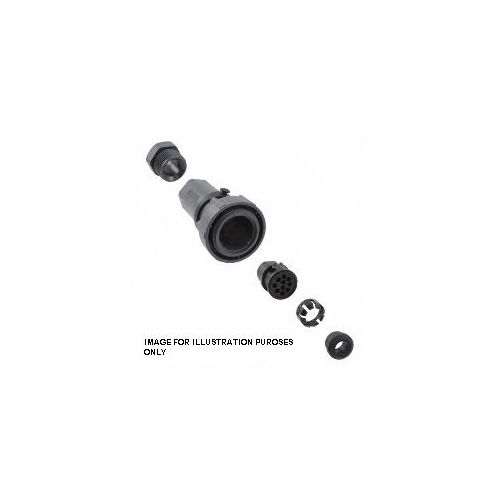

7000 Series Buccaneer Plastic 10 Pole Female Flex Cable Connector
| Complete Electronics Part No | PXP701010SCR1113 |
|---|---|
| Manufacturers Part No. | PXP7010/10S/CR/1113 |
| Type | Cable Socket |
| Mounting | Cable |
| Number of poles | 10 |
| Cable Gland Size | 11-13 mm |
| Termination | Crimp |
| Male/Female | Female |
| Housing Construction | Plastic |
| Rated Voltage | 600V |
| Rated Current | 10A |
| IP Rating | IP66 / 68 / 69K |
Description
PXP7010/10S/CR/1113
10 Pole Female Flex Cable Connector
- Voltage: 600Vac/dc
- Current: 10 Amps
- Gender: Female
- Application: Cable Mount
- Contacts: Sockets
- Termination: Crimp, excluded, order separately
- Temperature range -40 °C/+120 °C
- Mates With Flex Cable Connector PXP7011 & PXP7012
