PX0707/P/03 | PX0707P03 | Connector

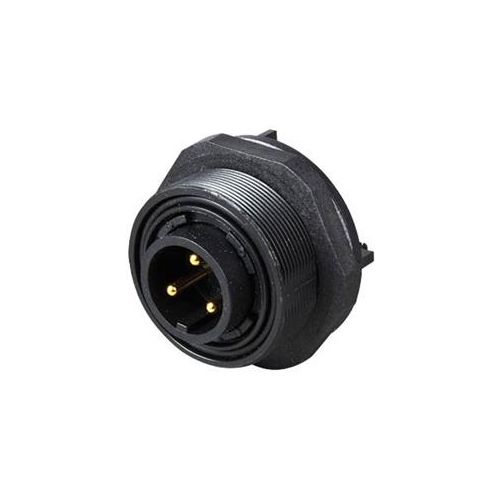

Standard Series Buccaneer 3 Pole Male Rear Panel Mount Connector
| Complete Electronics Part No | PX0707P03 |
|---|---|
| Manufacturers Part No. | PX0707/P/03 |
| Type | Panel Mount Connector |
| Mounting | Rear Mounting |
| Number of poles | 3 |
| Termination | PCB Mount |
| Male/Female | Male |
| Rated Voltage | 277V |
| Rated Current | 12A |
| IP Rating | IP68 |
Description
PX0707P03
Standard Series Buccaneer 3 Pole Male Rear Panel Mount Connector
- Mates with Flex Cable Connector
- Voltage: 277Vac/dc
- Current: 12Amps
- Application: Panel Mount (Rear)
- Contacts: Pins
- Termination: PCB
- Temperature: -20 °C/+70 °C
- IP Rating: Water and Dust to IP68
- Approvals: UL, CSA & VDE
