PX0762/P | PX0762P | Connector

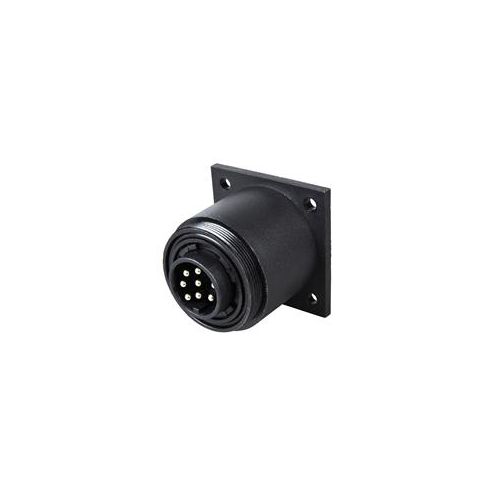

Standard Series Buccaneer 9 Pole Male Flange Mount Connector
| Complete Electronics Part No | PX0762P |
|---|---|
| Manufacturers Part No. | PX0762/P |
| Type | Panel Mount Connector |
| Mounting | Flange Fixing |
| Number of poles | 9 |
| Termination | Crimp / Solder |
| Male/Female | Male |
| Rated Voltage | 150V |
| Rated Current | 5A |
| IP Rating | IP68 |
Description
PX0762P
Standard Series Buccaneer 9 Pole Male Flange Mount Connector
- Mates with Flex Cable Connector
- Voltage: 150Vac/dc
- Current: 5Amps
- Application: Bulkhead Mount
- Contacts: Pins
- Termination: Crimp
- Temperature: -20 °C/+70 °C
- IP Rating: Water and Dust to IP68
- Approvals: UL, CSA & VDE
