PX0823/S | PX0823S | Connector

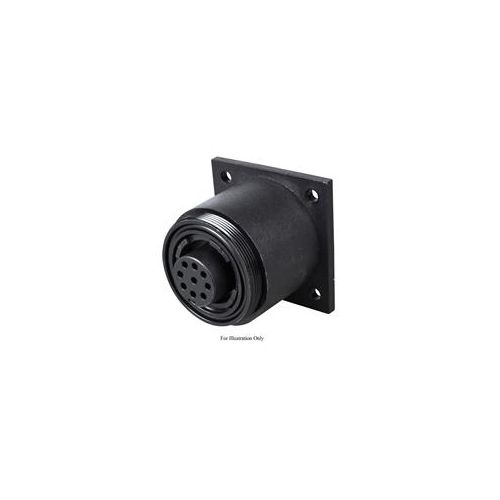

Standard Series Buccaneer 25 Pole Female Flange Mount Connector
| Complete Electronics Part No | PX0823S |
|---|---|
| Manufacturers Part No. | PX0823/S |
| Type | Panel Mount Connector |
| Mounting | Flange Fixing |
| Number of poles | 25 |
| Termination | Crimp / Solder |
| Male/Female | Female |
| Rated Voltage | 50V |
| Rated Current | 1A |
| IP Rating | IP68 |
Description
PX0823S
Standard Series Buccaneer 25 Pole Female Flange Mount Connector
- Mates with Flex Cable Connector
- Voltage: 50Vac/dc
- Current: 1Amps
- Application: Bulkhead Mount
- Contacts: Sockets
- Termination: Crimp/Solder (order separately)
- Temperature: -20 °C/+70 °C
- IP Rating: Water and Dust to IP68
- Approvals: UL, CSA & VDE
