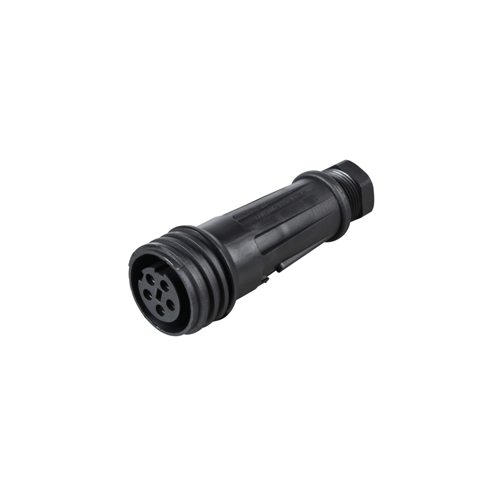

PX0921/05/S | PX092105S | Bulgin 900 Series Buccaneer | Connector
900 Series Buccaneer 5 Pole Female Flex In-Line Cable Connector
| Complete Electronics Part No | PX092105S |
|---|---|
| Manufacturers Part No. | PX0921/05/S |
| Type | Cable Socket |
| Number of poles | 5 |
| Termination | Screw |
| Male/Female | Female |
| Cable Entry | Straight |
| Cable Diameter | 13-15mm, 7-13mm with additional gland pack |
| Rated Voltage | 600V |
| Rated Current | 32A |
| IP Rating | IP68 |
Description
PX0921/05/S
900 Series Buccaneer 5 Pole Female Flex In Line Connector
- Voltage: 600Vac/dc
- Current: 32Amps
- Gender: Female A
- Contacts: Sockets
- Termination: Screw
- Mates with PX0911 and PXA911 connectors
- Temperature range -40 °C/+85 °C
- 13-15mm cable dia. as standard, 7-13mm with additional gland pack
