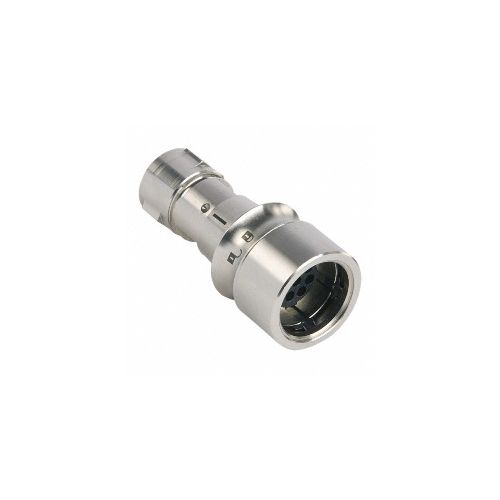

PXM6010/08S/CR/0910 | PXM601008SCR0910 | Bulgin 6000 Series
Flex connector, 8 pole socket contacts
| Complete Electronics Part No | PXM601008SCR0910 |
|---|---|
| Manufacturers Part No. | PXM6010/08S/CR/0910 |
| Type | Cable Socket |
| Number of poles | 8 |
| Cable Gland Size | 9.0-10.0 mm |
| Termination | Crimp |
| Male/Female | Female |
| Housing Construction | Metal |
| Cable Entry | Straight |
| Rated Voltage | 277V |
| Rated Current | 10A |
| IP Rating | IP66 / 68 / 69K |
Description
PXM6010/08S/CR/0910
Flex connector, 8 pole socket contacts
- Voltage: 277Vac/dc
- Current: 10Amps
- Gender: Female
- Application: Cable Mount
- Contacts: Sockets
- Termination: Crimp, excluded, order separately
- Operating Temp. Range: –40°C to +120°C
