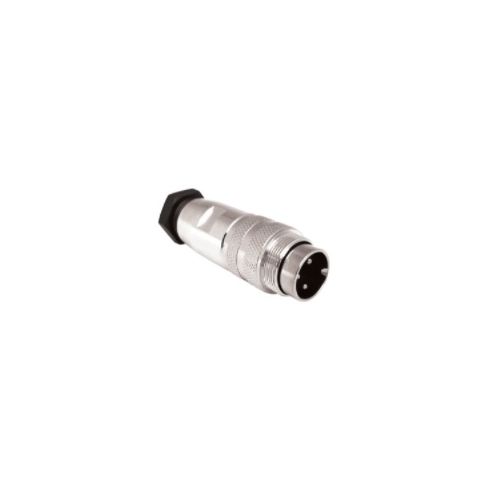

PXMBNI16FIM12ASC | Metal In Line Flex Body 12 Pole Plug
M16 Series A Code Brass Nickel Plated Flex Body Connector 12 Pole Plug, IP67, Screw Locking
| Complete Electronics Part No | PXMBNI16FIM12ASC |
|---|---|
| Manufacturers Part No. | PXMBNI16FIM12ASC |
| Type | Cable Socket |
| Number of poles | 12 |
| Termination | Solder |
| Male/Female | Male |
| Housing Construction | Metal |
| Rated Voltage | 60V |
| Rated Current | 3A |
| IP Rating | IP67 |
Description
PXMBNI16FIM12ASC
Metal 12 Pole In Line Flex Body Plug
- A Coded
- Screw Locking
- EMI shielding
- Ingress Protection: IP67 when mated
- DIN EN 61076-2-106
- Max Current: 3 Amps
- Max Voltage 60V
- Termination: Solder
- Cable Gland: PG9
- Temperature: -25°C to +80°C
- Body Material: Brass Nickel Plated
- Plug Contacts: Brass, Gold Plating
- O Rings & Gaskets: Viton
- 500 Mating Cycles
- Cable Diameter: 5.0 - 7.5mm
- Diameter Over Coupling Ring: 18.5mm
- Colour: Grey
- RoHS Compliant
