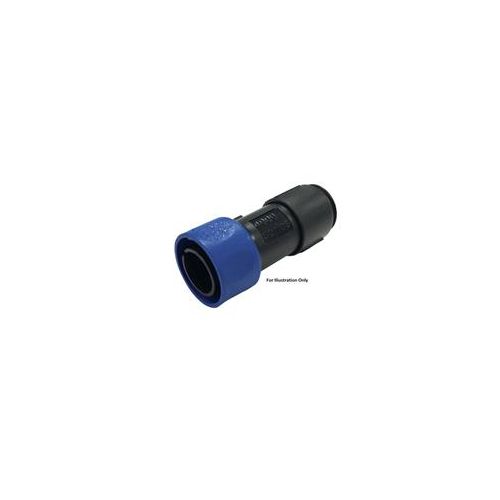

PXP4010/12S/6570 | PXP401012S6570 | Bulgin 4000 Series | Connector
12 Pole Female Flex Cable Connector, 6.5-7.0mm Cable Gland
| Complete Electronics Part No | PXP401012S6570 |
|---|---|
| Manufacturers Part No. | PXP4010/12S/6570 |
| Type | Cable Socket |
| Mounting | Cable |
| Number of poles | 12 |
| Cable Gland Size | 6.5-7.0 mm |
| Termination | Crimp |
| Male/Female | Female |
| Housing Construction | Plastic |
| Rated Voltage | 600V |
| Rated Current | 3A |
| IP Rating | IP66 / 68 / 69K |
Description
PXP4010/12S/6570
12 Pole Female Flex Cable Connector
- Gender: Female
- Application: Cable Mount
- Voltage: 600Vac/dc
- Current: 3Amps
- Mating: Push/Pull 1/4" Turn Locking (Bayonet)

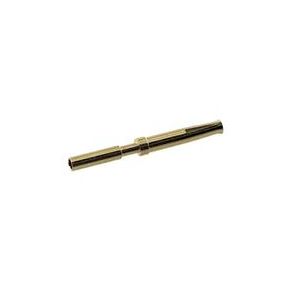

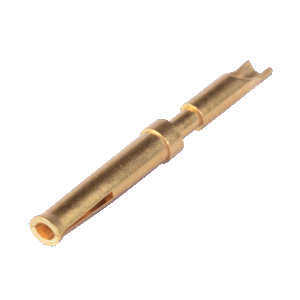

- Contacts: Excluded but gold plated Crimp/Solder Contacts available separately
- Temperature: -40° to +120°C
- Gland Size: 6.5-7.0mm
- IP Rating: IP66, IP68 & IP69K when mated
- Approvals: EN60058-2-52 & EN60068-2-64
- Approvals (pending): UL, CSA, VDE

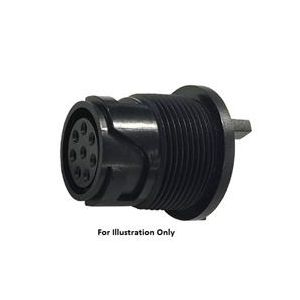

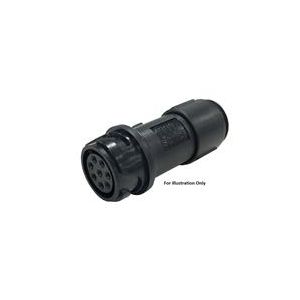

- Mates with PXP4011,PXP4013 & PXP4013 ranges
- Accessories: Sealing Cap PXP4081, Gland/Collet Packs PXP4088/3050, PXP4088/5070, Coloured O-Ring & washer pack PXP4089
