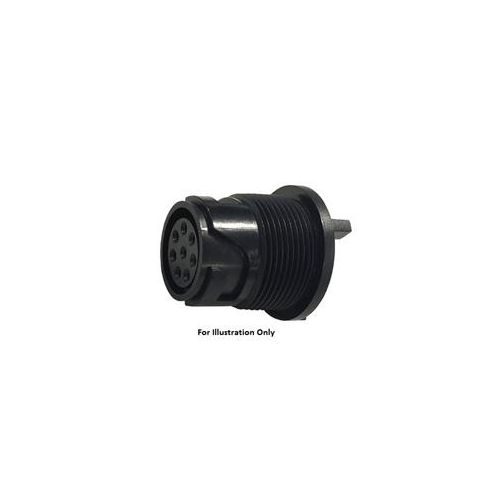

PXP4013/08S | PXP401308S | Bulgin 4000 Series | Connector
4000 Series Buccaneer 8 Pole Female Rear Panel Mount Connector
| Complete Electronics Part No | PXP401308S |
|---|---|
| Manufacturers Part No. | PXP4013/08S |
| Type | Panel Mount Connector |
| Mounting | Rear Mounting |
| Number of poles | 8 |
| Termination | Crimp |
| Male/Female | Female |
| Housing Construction | Plastic |
| Rated Voltage | 600V |
| Rated Current | 8A |
| IP Rating | IP66 / 68 / 69K |
Description
PX4013/08S
8 Pole Female Rear Panel Mount Connector
- Gender: Female
- Application: Panel Mount (Rear)
- Voltage: 600Vac/dc
- Current: 8Amps
- Mating: Push/Pull 1/4" Turn Locking (Bayonet)
- Contacts: Excluded but gold plated Crimp/Solder Contacts available separately
- Temperature: -40° to +120°C
- IP Rating: IP66, IP68 & IP69K when mated
- Approvals: EN60058-2-52 & EN60068-2-67
- Approvals (pending): UL, CSA, VDE

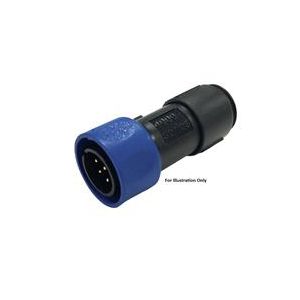

- Mates with PXP4010 range

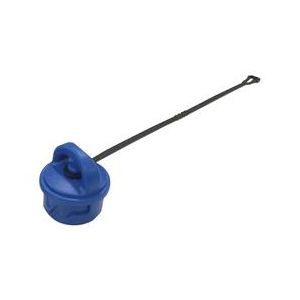

- Accessories: Sealing Cap PXP4083, Coloured O-Ring & washer pack PXP4089
