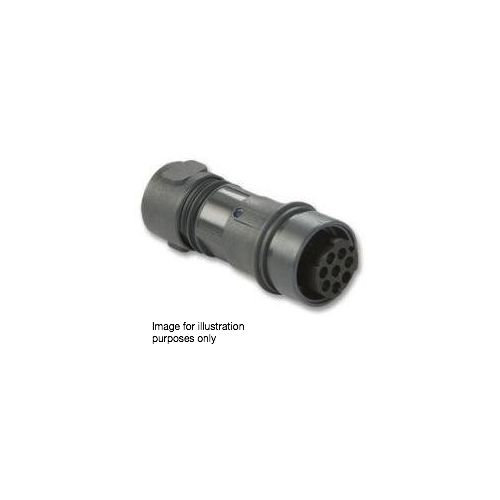

PXP6011/16S/CR/0507 | PXP601116SCR0507 | Bulgin 6000 Series
Flex in-line connector, 16 pole socket contacts
| Complete Electronics Part No | PXP601116SCR0507 |
|---|---|
| Manufacturers Part No. | PXP6011/16S/CR/0507 |
| Type | Cable Socket |
| Number of poles | 16 |
| Cable Gland Size | 5.0-7.0 mm |
| Termination | Crimp |
| Male/Female | Female |
| Housing Construction | Plastic |
| Cable Entry | Straight |
| Rated Voltage | 60V |
| Rated Current | 3A |
| IP Rating | IP66 / 68 / 69K |
Description
PXP6011/16S/CR/0507
Flex in-line connector, 16 pole socket contacts
- Voltage: 60Vac/dc
- Current: 3Amps
- Gender: Female
- Application: Cable Mount
- Contacts: Sockets
- Termination: Crimp, excluded, order separately
- Operating Temp. Range: –40°C to +120°C
