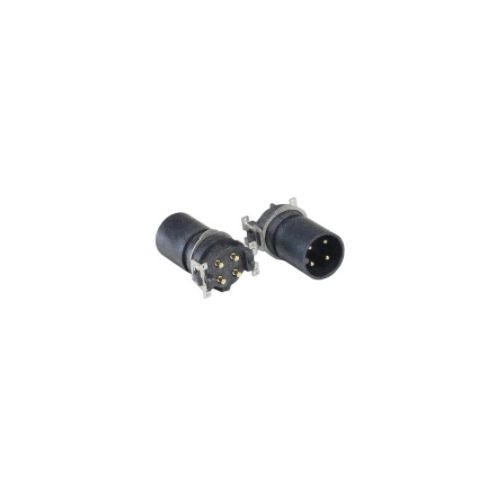

PXPLCP12SMM04APC | M12 4 pin male A Coded SMT
M12 4 pin male connector A Coding, SMT, PVC Body 250V, 4Amp
| Complete Electronics Part No | PXPLCP12SMM04APC |
|---|---|
| Manufacturers Part No. | PXPLCP12SMM04APC |
| Type | PCB Mount |
| Mounting | PCB Mounting |
| Male/Female | Plug |
| Number of poles | 4 |
| Rated Voltage | 250V |
| Rated Current | 4A |
| IP Rating | IP67 |
Description
M12 4 pin male, A coded, SMT
- Max Voltage: 250V
- Max Current: 4A
- Coupling Type: Screw
- Contact Type: Plug
- Code A
- Cable Length: N/A
- Mounting: PCB
- Body Material: PVC
- Thread Size M12 x 1.0
- IP Rating: IP67
- Cable insulation: N/A
- Operating Temperature: -25ºC to +80ºC
- Diameter Over Coupling Ring: 7.0mm
- M12 Series Surface Mount Terminal
- Commodity Code: 85366900
- Country of Origin: China
